RJ45 Signal Socket Direct IP44

SN:FL-01-001

Link Mode: PUSH LOCK

Rated Current: 1.5A

Rated Voltage:50V

Protection Level: IP44

Wire Specifications: Cat5, Cat6 Network Cable

Voltage Resistance: 1000V/per minute

Insulation Resistance: >500MΩ

Plugging Time: ≥500

Working Temperature:  -20℃~80℃

Flame Retardant Level: 94-V0

SHARE
Product Info

  1.Specification Parameter



Link Mode:PUSH LOCK
Rated Current:1.5A

Protection Level:IP44Rated Voltage:50V

Wire Specifications:Cat5, Cat6 network cableVoltage Resistance:1000V/per minute

Insulation Resistance:>500MΩPlugging Time:≥500

Working Temperature:-20℃~80℃
Flame Retardant level:94-V0

  2.Materials



Shell Insulation Parts:
High Performance Engineering Plastics

Metal Shell Part:Zinc Alloy Sandblasting Hard Chromium Plating

Conductive Terminal:Beryllium Copper Gold Plated 2U"

Hardware Single:SUS 304

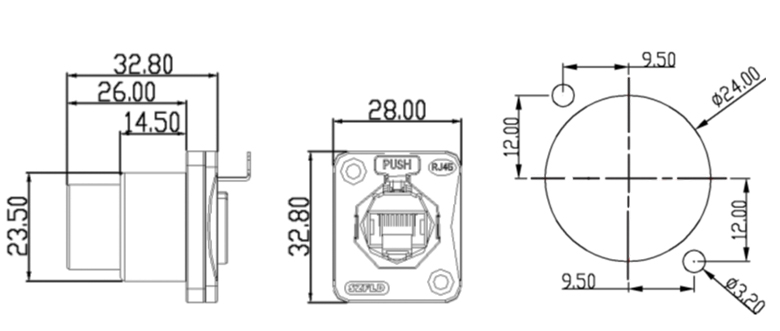

  3.Hole Size

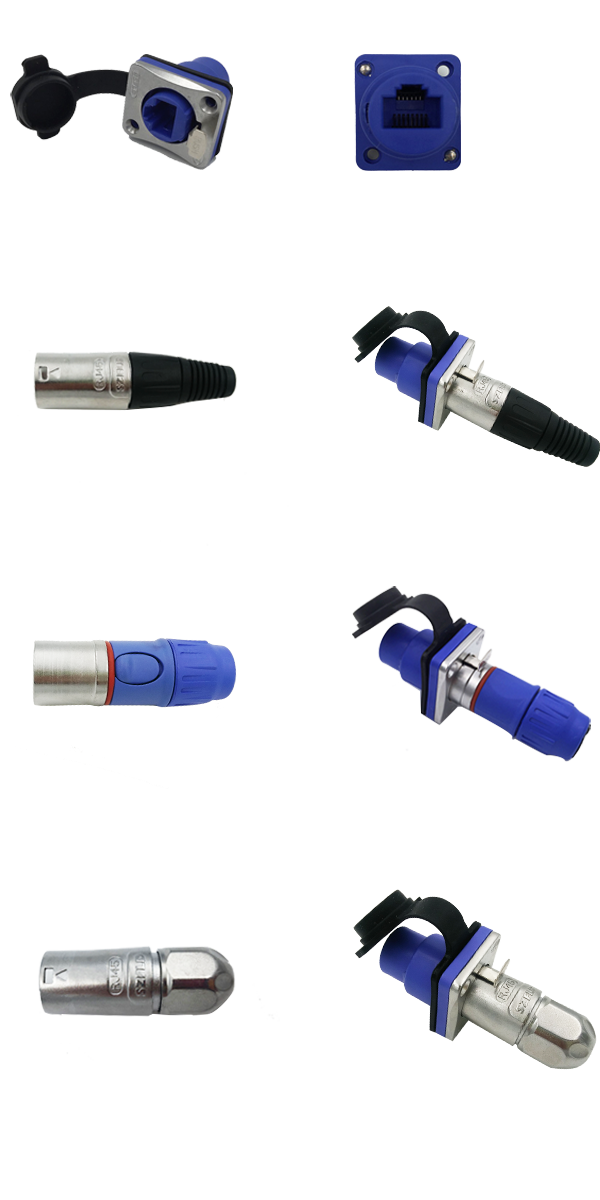

  4.Real Shooting

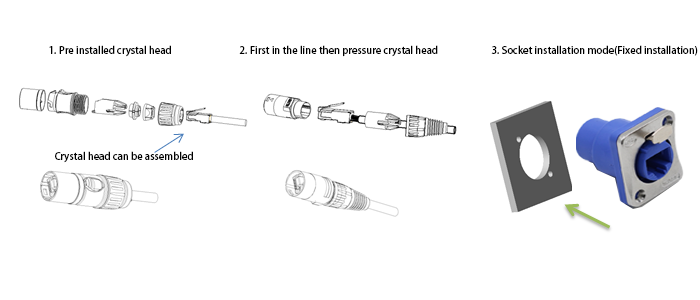

  5.Operation Guide
