Power Socket/IP44/Grey

SN:FL-02-004

Link Mode: PUSH LOCK

Rated Current: 20A

Rated Voltage: 250V

Protection Level: IP44

Voltage Resistance: 2500V/per minute

Insulation Resistance: >500MΩ

Plugging Time: ≥500

Working Temperature: -20℃~80℃

Flame Retardant Level: 94-V0

SHARE
Product Info

  1.Specification Parameter



Link Mode:PUSH LOCK
Rated Current:20A

Protection Level:IP44Rated Voltage:250V

Wire Specifications:1.5mm²~2.5mm²
Voltage Resistance:2500V/per minute

Insulation Resistance:>500MΩ          Plugging Time:≥500

Working Temperature:-20℃~80℃
Flame Retardant level:94-V0


  2.Material



Shell Insulation Parts:High Performance Engineering Plastics

Metal Shell Part:Zinc Alloy Sandblasting Hard Chromium Plating

Conductive Terminal:Beryllium Copper Gold Plated 2U"

Hardware Single:SUS 304





  3.Relevant Certification

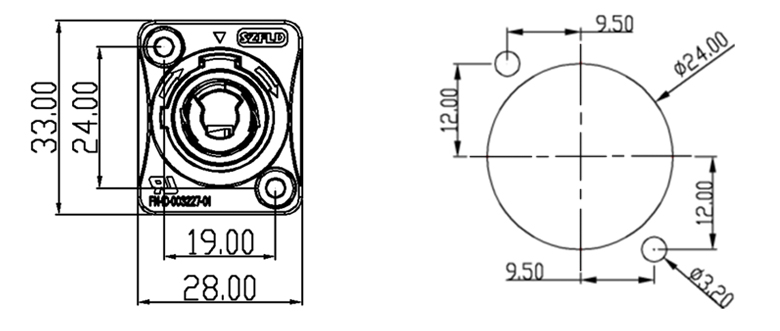

  4.Hole Size

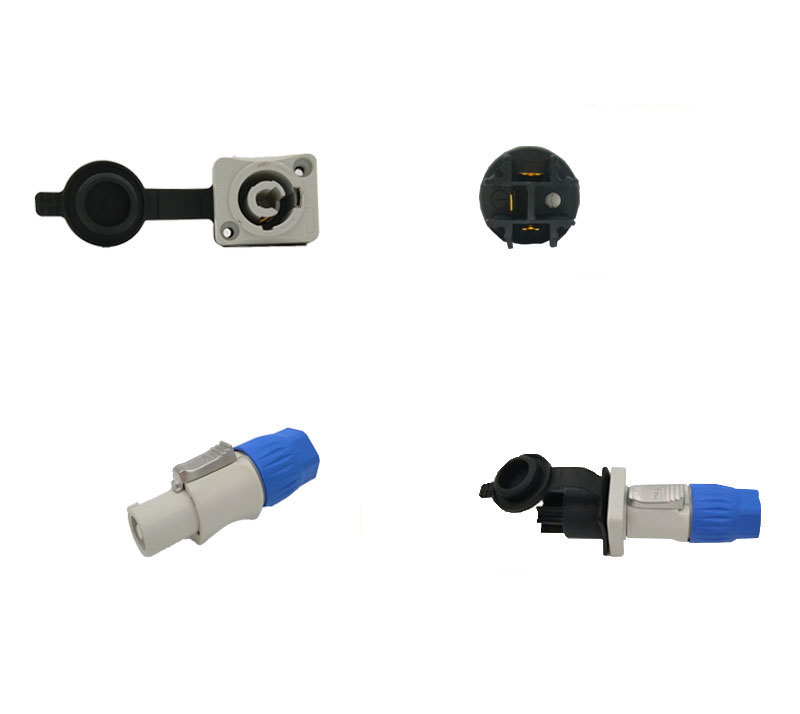

  5.Real  Shooting

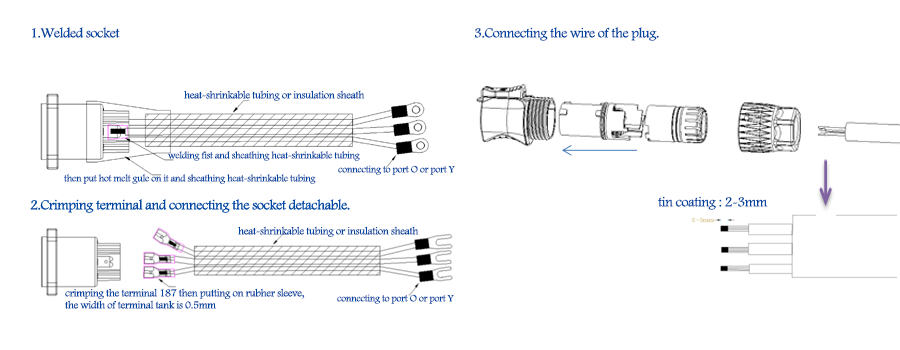

  6.Operation Guide
