3 Pins Power Plug/IP65(FN)

SN:FL-02-011

Link Mode:PUSH LOCK

Rated Current: 20A

Rated Voltage: 250V
Protection Level: IP65
Voltage Resistance(AC.V): 2500V/per minute

Plugging Time: ≥500

Working Temperature: -20℃~80℃

Wire Specifications: 1.5mm²~2.5mm²

Insulation Resistance: >1000MΩ

Flame Retardant Level: 94-V0

SHARE
Product Info

  1.Specification Parameter



Link Mode:PUSH LOCK
Rated Current:20A

Protection Level:IP65Rated Voltage:250V

Wire Specifications:1.5mm²~2.5mm²
Voltage Resistance:2500V/per minute

Insulation Resistance:>1000MΩ          Plugging Time:≥500

Working Temperature:-20℃~80℃
Flame Retardant level:94-V0


  2.Material



Shell Insulation:High Performance Engineering Plastics

Hardware:Zinc Alloy/Hard Chromium Plating

Copper Needle And Hole :Copper Alloy(Hpb59-1)

Plastic:High Temperature Resistance And FireproofV0 PBT

Plating:Gold Plated 2U"



  3.Relevant Certification

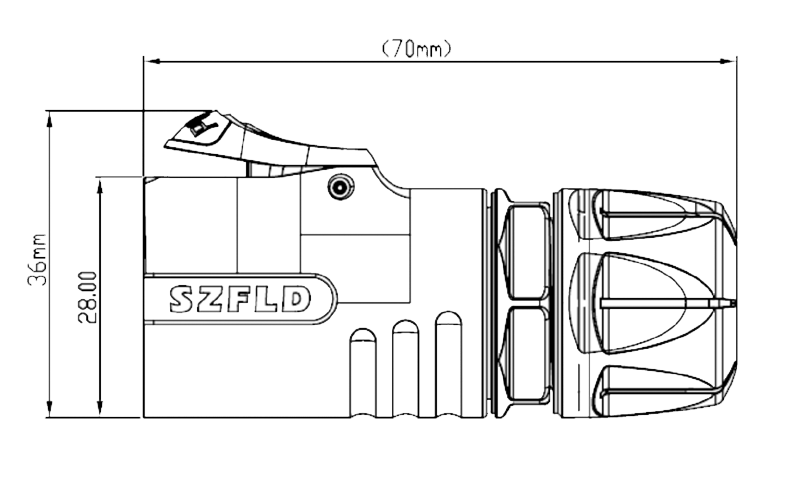

  4.Hole Size

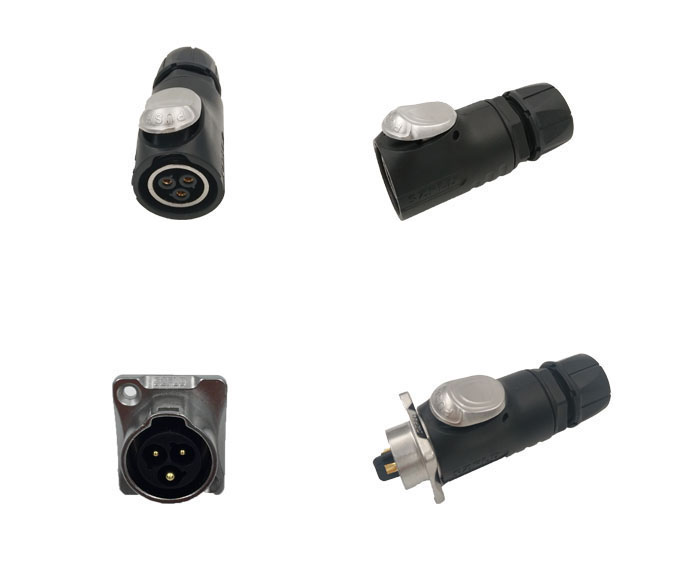

  5.Real  Shooting

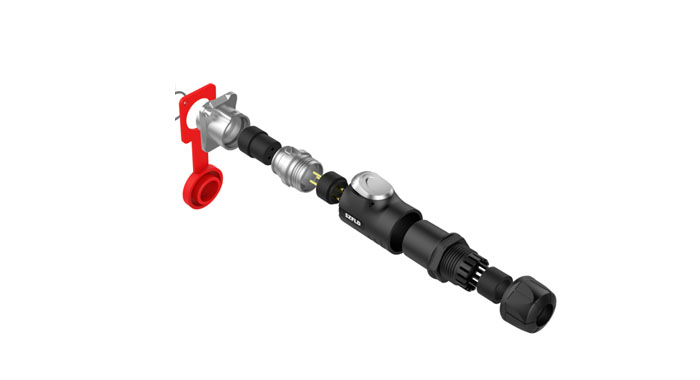

  6.Operation Guide
