3 Pins Butt-joint Power Plug/IP65(FN)
SN:FL-02-017
Link Mode: PUSH LOCK
Rated Current: 30A
Rated Voltage: 250V
Protection Level: IP65
Voltage Resistance: 2500V/per minute
Insulation Resistance: >1000MΩ
Plugging Time: ≥500
Wire Specifications: 1.5mm²~2.5mm²
Working Temperature: -20℃~80℃
Flame-retarded Rating: UL94-V0
SHAREProduct Info
1.Specification Parameter
| | Link Mode: | PUSH LOCK | Rated Current: | 30A |
| Protection Level: | IP65 | Rated Voltage: | 250V | |
| Wire Specifications: | 1.5mm²~2.5mm² | Voltage Resistance: | 2500V/per minute | |
| Insulation Resistance: | >1000MΩ | Plugging Time: | ≥500 | |
| Working Temperature: | -20℃~80℃ | Flame Retardant level: | 94-V0 |
2.Material
| | Shell Insulation: | High Performance Engineering Plastics |
| Hardware: | Zinc Alloy/Hard Chromium Plating | |
| Copper Needle And Hole : | Copper Alloy(Hpb59-1) | |
| Plastic: | High Temperature Resistance And FireproofV0 PBT | |
| Plating: | Gold Plated 2U" |
3.Relevant certification

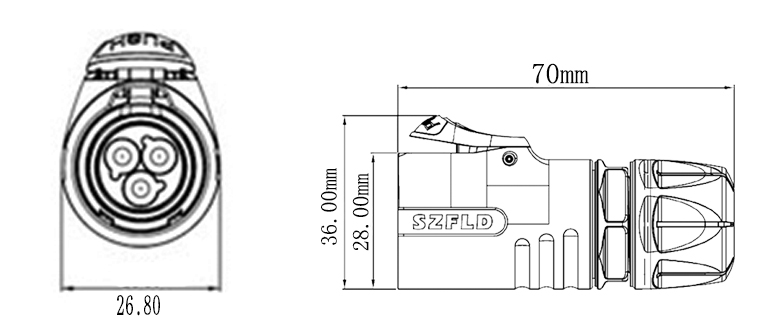

4.Hole size

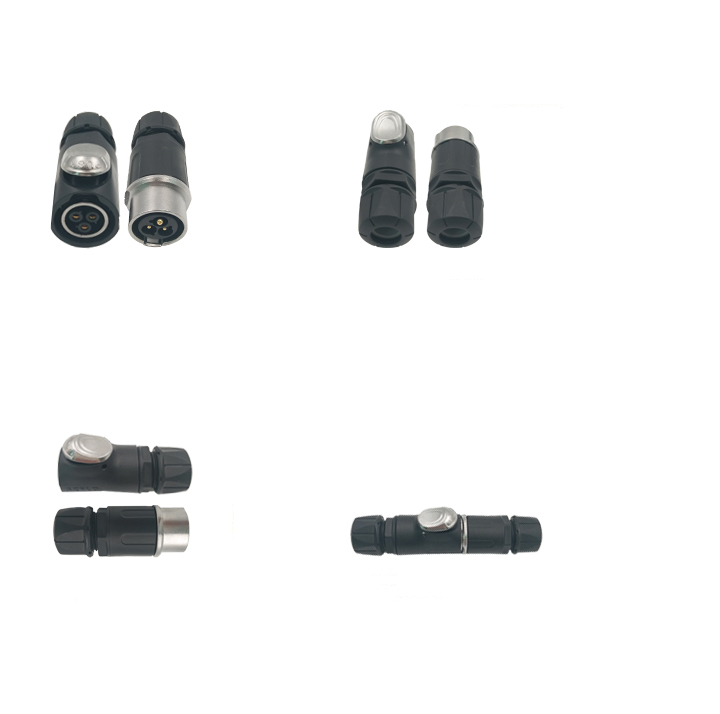

5.Real shooting

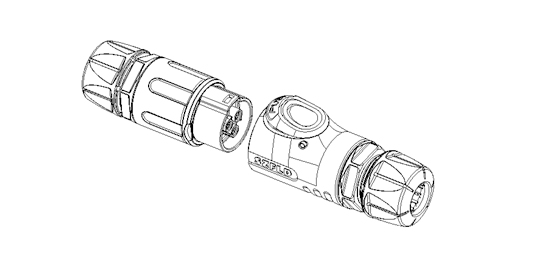

6.Operation guide
