Power Plug And Socket/IP68(JH)
SN:FL-02-018
Conductor Link Mode: Screw Crimping
Core Number: 3
Rated Current: 16A
Rated Voltage: 250V
Protection Level: IP68
Plugging Time: ≥500
Contact Resistance: ≤10MΩ
Insulation Resistance: ≥500MΩ
Working Temperature:-40℃~85℃
Maximum External Diameter Of Cable: 11mm
SHAREProduct Info
1.Specification Parameter
| | Conductor Link Mode: | Screw Crimping | Core Number: | 3 |
| Rated Current: | 16A | Rated Voltage: | 250V | |
| Protection Level: | IP68 | The value of Permissible Voltage: | 2500V | |
| Contact Resistance: | ≤10MΩ | Plugging Time: | ≥500 | |
| Insulation Resistance: | ≥500MΩ | Maximum External Diameter Of cable: | 11mm | |
| Working Temperature: | -40℃~85℃ |
2.Material
| | Sealing Ring: | Silicon Rubber |
| Conductor Material / plating: | Cu/Ni | |
| Shell Material: | PA66 |

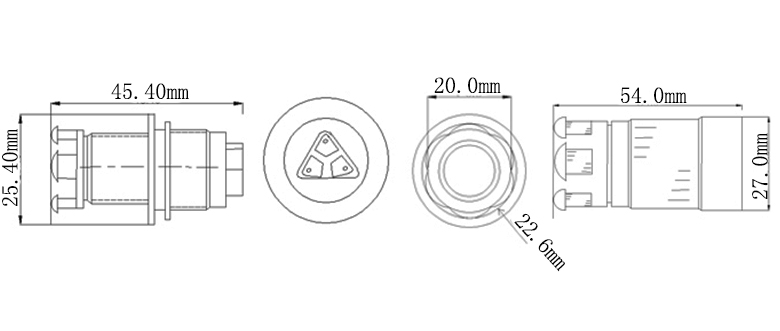

3.Hole size

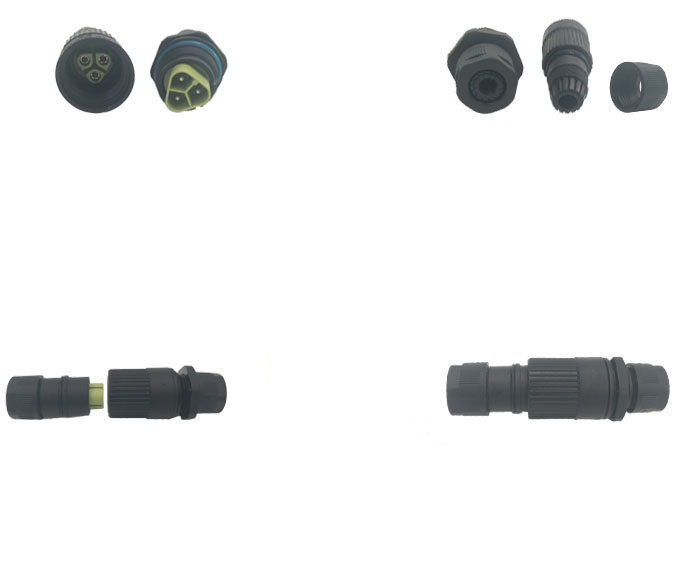

4.Real Shooting
