Power Connector Yellow And Black Male Plug Female Socket
SN:FL-02-023
Link Mode: Quick Lock
Contact resistance: ≤5MΩ
Dielectric strength: 4 kVdc
Rated Current Per Contact: 16A
Rated Voltage: 250V
Plugging Time: ＞1000
Wire Size: 2.5mm²/12 AWG
Wiring: screw type terminals or soldering
Insulation Resistance: ＞0.1 GΩ
SHAREProduct Info
1.Specification Parameter
| Link Mode: | Quick Lock | Contact resistance: | ≤5MΩ | |
| | Rated Voltage: | 250V | Rated Current Per Contact: | 16A |
| Plugging Time: | ＞1000 | Protection Level: | IP65 | |
| Wire Size: | 2.5mm²/12 AWG | Flame-retarded Rating: | UL94-V0 | |
| Insulation Resistance: | ＞0.1 GΩ | Temperature Range: | -30℃ --80℃ | |
| Dielectric Strength: | 4 kVdc | Solderability: | Complies with IEC 68-2-20 | |
| Wiring: | screw type terminals or soldering |
2.Material
| Bushing: | Polyamide (PA66 30% GR) | |
| Contact Plating: | 4µm /2µm Ag | |
| Locking Element: | Zinc diecast (ZnAl4Cu1) | |
| Shell: | Polyamide (PA66 30 % GR) | |
| Contacts: | Bronze (Cu) |

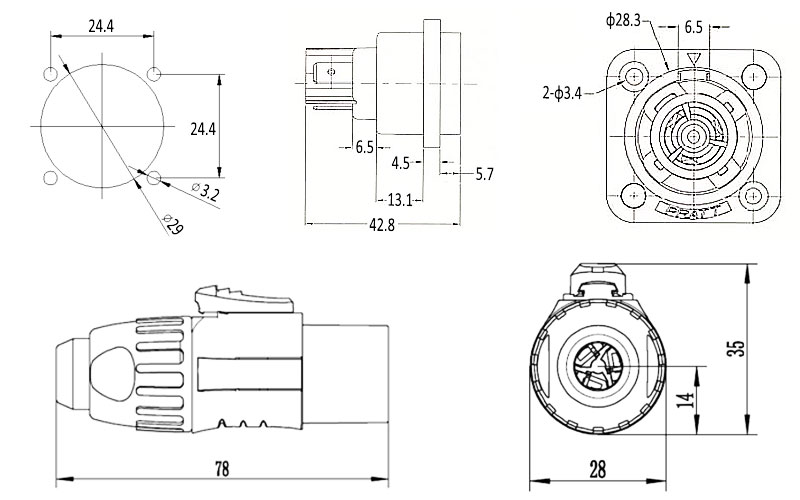

3.Hole Size
4.Real Shooting
