Rear Mounted Nut Socket SD13-3

SN:FL-05-007

Link Mode: Welding, Pressing

Insert Mode: Thread Connection

Shell Material: Thermoplastic PA66

Insulator: Thermoplastic PPS High Temperature Resistant 260℃

Contact Core Number: 3

Contact Element Diameter(øMM): ø1×3

Contact Material: Copper (Gold Plated,1.5m Thickness)


SHARE
Product Info

  1.Material And Technical Parameters



Link Mode: Welding, PressingInsert Mode: Thread Connection

Shell Material: Thermoplastic PA66Plugging Time: >500

Rated Current(A): 5AContact Resistance(MΩ): 5

Withstand Voltage:
1500V
Working Voltage(AC.V): 380V

Insulator: Thermoplastic PPS High Temperature Resistant 260℃Temperature Range: -45℃--85℃

Contact Material: Copper (Gold Plated,1.5m Thickness)Insulation Resistance(MΩ): 2000


  2.Hole Size

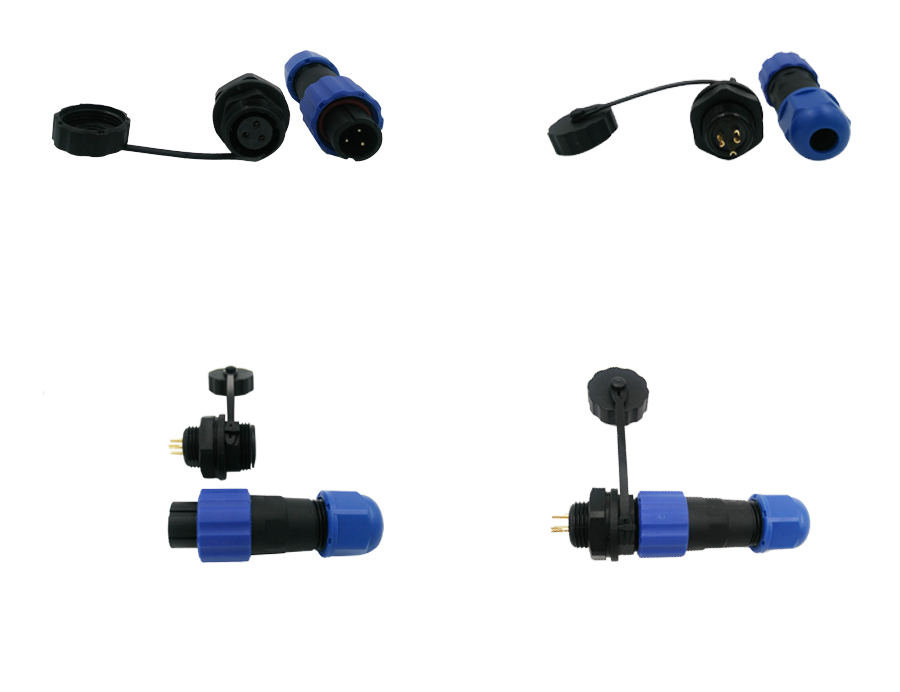

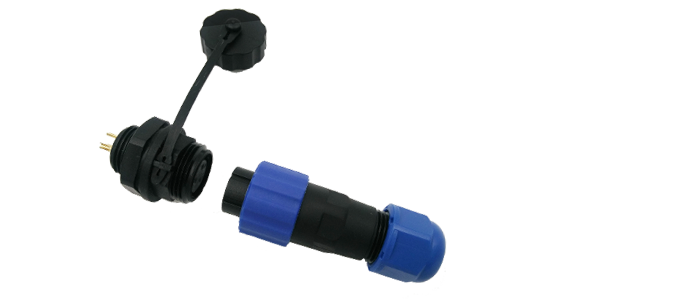

  3.Real Shooting




  4.Operation Guide
