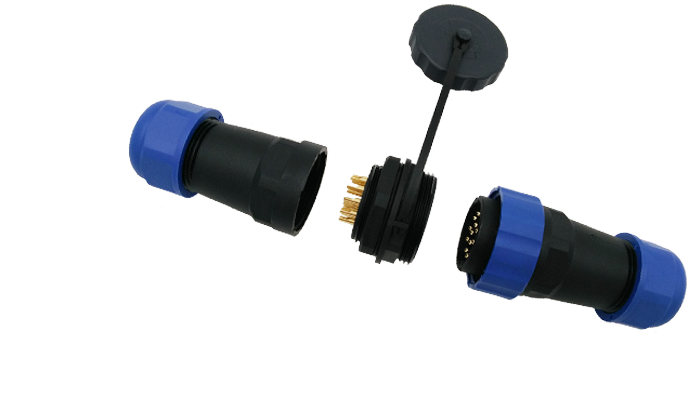

Rear Mounted Nut Socket SD28-16-1
SN:FL-05-099
Link Mode: Welding, Pressing
Insert Mode: Thread Connection
Shell Material: Thermoplastic PA66
Insulator: Thermoplastic PPS High Temperature Resistant 260℃
Contact Core Number: 16
Contact Element Diameter(øMM): ø1.8×16
Contact Material: Copper (Silver Plated,Gold Plated)
SHAREProduct Info
1.Material And Technical Parameters
| | Link Mode: | Welding, Pressing | Insert Mode: | Thread Connection |
| Shell Material: | Thermoplastic PA66 | Plugging Time: | >500 | |
| Rated Current(A): | 5A | Contact Resistance(MΩ): | 2 | |
| Withstand Voltage: | 1500V | Working Voltage(AC.V): | 250V | |
| Insulator: | Thermoplastic PPS High Temperature Resistant 260℃ | Temperature Range: | －25℃--110℃ | |
| Contact Material: | Copper (Silver Plated, Gold Plated) | Insulation Resistance(MΩ): | 2000 |
2.Hole Size

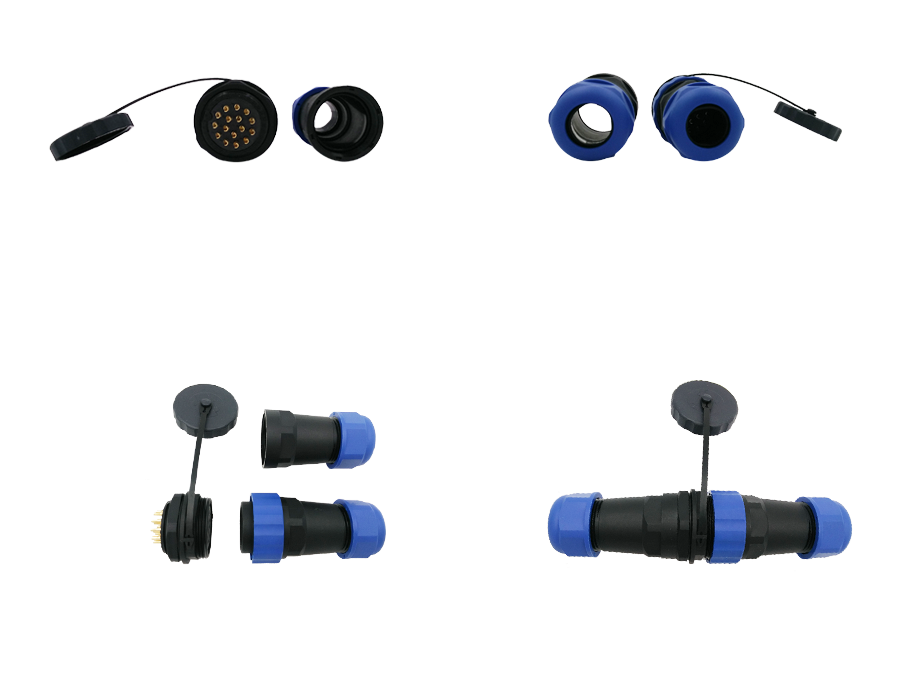

3.Real Shooting
4.Operation Guide
