Power And Signal Connector Wireless Connection
SN:FL-06-012
Link Mode: Manual Twist
Rated Current: 30A(Power)5A(Signal)
Rated Voltage: 250V(Power) 125V(Signal)
Voltage Resistance: 1000V(DC) 2500V (AC)
Insulation Resistance(MΩ): ＞1000MΩ
Plugging Time: 500
Working Temperature: -20℃～80℃
Flame Retardant Level: UL94-V0
SHAREProduct Info
1.Specification Parameter
| | Link Mode: | Manual Twist | Rated Current: | 30A(Power) 5A(Signal) |
| Rated Voltage: | 250V(Power) 125V(Signal) | Voltage Resistance: | 1000(DC) 2500V (AC) | |
| Insulation Resistance: | ＞1000MΩ | Plugging Time: | 500 | |
| Working Temperature: | -20℃~80℃ | Flame Retardant Level: | UL94-V0 |
2.Materials
| | Shell Insulation Parts: | High Performance Engineering Plastics |
| Hardware: | Aluminum Alloy Hard Chromium Plating | |
| Copper Core: | Hpb59-1 Copper Alloy | |
| Plastic: | PA66 High Temperature Resistant Fire V0 | |
| Electroplated: | Gold Plated 2U" |

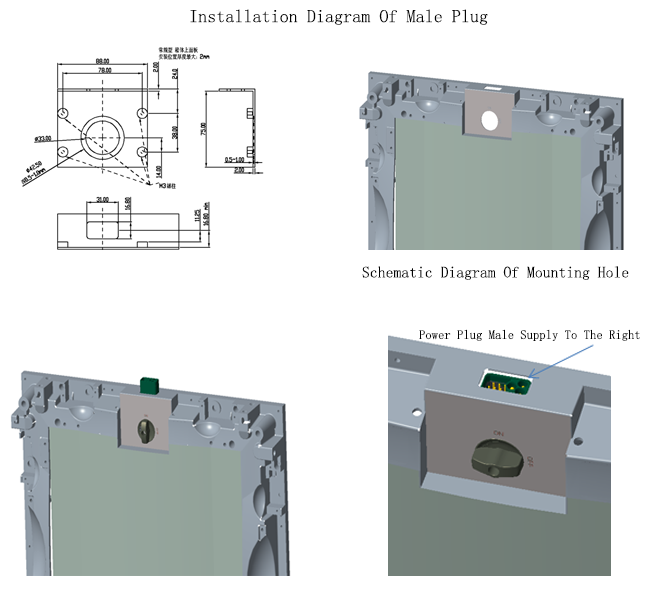

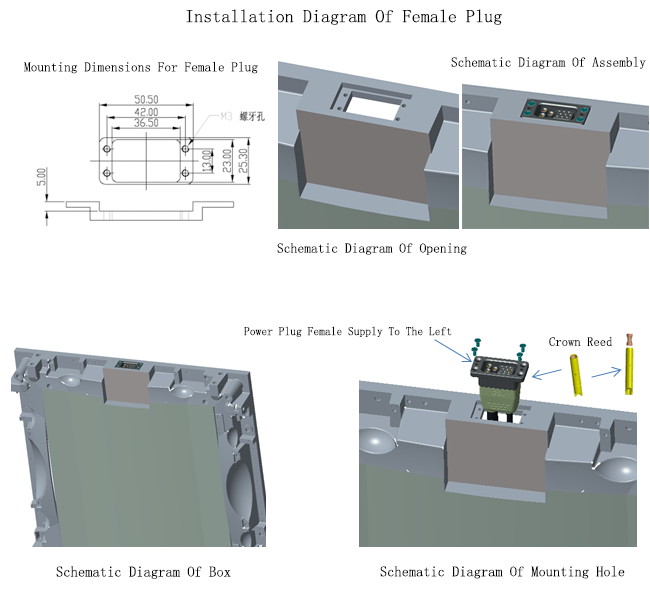

3.Hole size

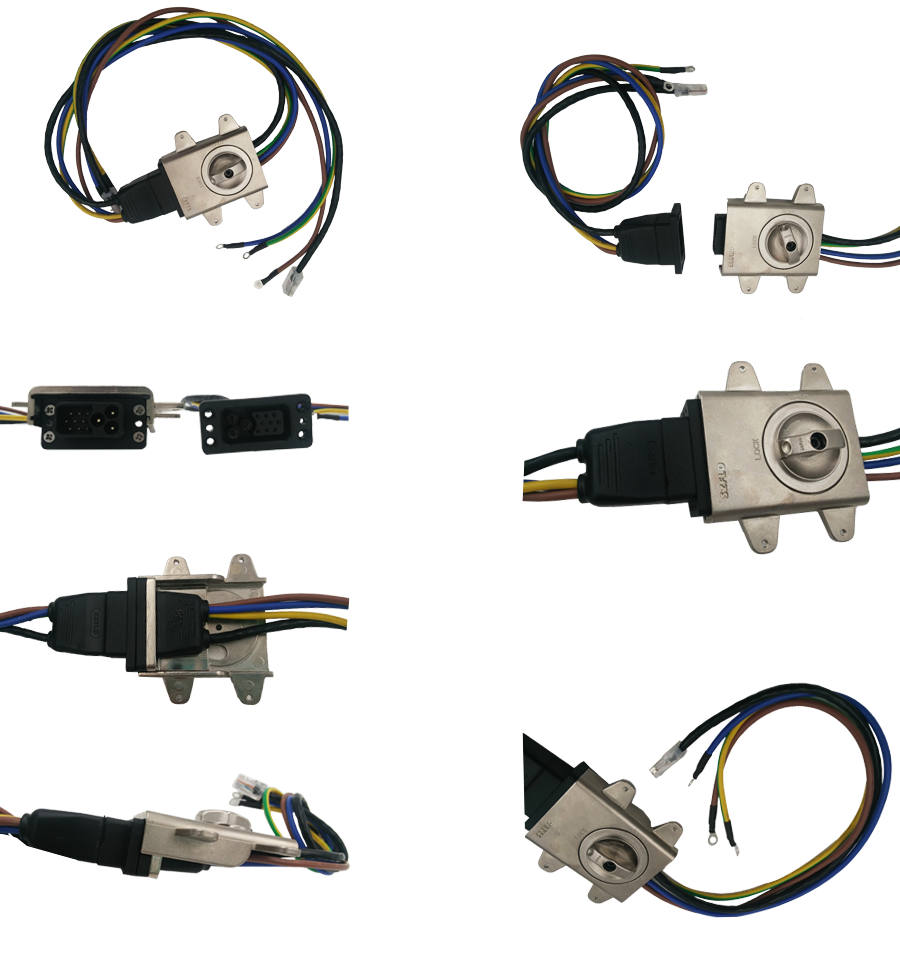

4.Real Shooting

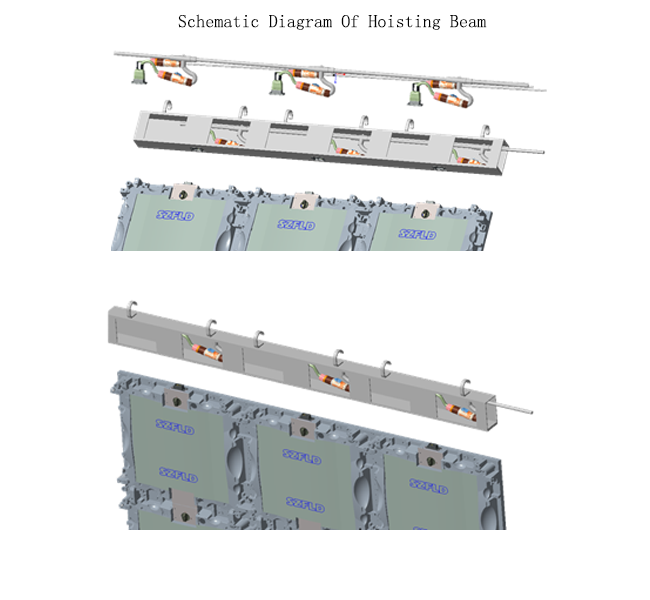

5.Operation Guide
