Socket/HDMI to HDMI
SN:FL-07-003
Contact Resistance: <10
Dielectric Strength: 1kVdc
Frequency Range: 1-100
Insulation Resistance: >0.5GΩ
Rated Current Per Contact: 1.5A
Rated Voltage: 50V
Transmission Performance: CAT5e
Following Standard: TIA/EIA586B,IEC11801
SHAREProduct Info
1.Electrical Parameters
| | Contact Resistance: | <10 | Dielectric Strength: | 1kVdc |
| Frequency Range: | 1-100MHz | Insulation Resistance: | >0.5GΩ | |
| Rated Current Per Contact: | 1.5A | Rated Voltage: | 50V | |
| Transmission Performance: | CAT5e | Following Standard: | TIA/EIA586B,IEC11801 |
2.Mechanical Parameters
| | Insert Pressure: | ≤20N | Pull Out Pressure: | ≤20N |
| Service Life: | >1000 | Surface Plate Thickness: | max4mm | |
Locking Device: | Key card lock | Base Shape: | D | |
| Temperature Range: | -30°C~80°C | Flammability: | UL94V-0 |
3.Material
| | Contact Plating: | 0.2μm Au over Ni plating | Contact: | Bronze(CuSn8) |
| Insulator: | PBTP 15% GR | Shell: | Zinc diecast(ZnAl4Cu1) | |
| Shell Plating: | Nickel |

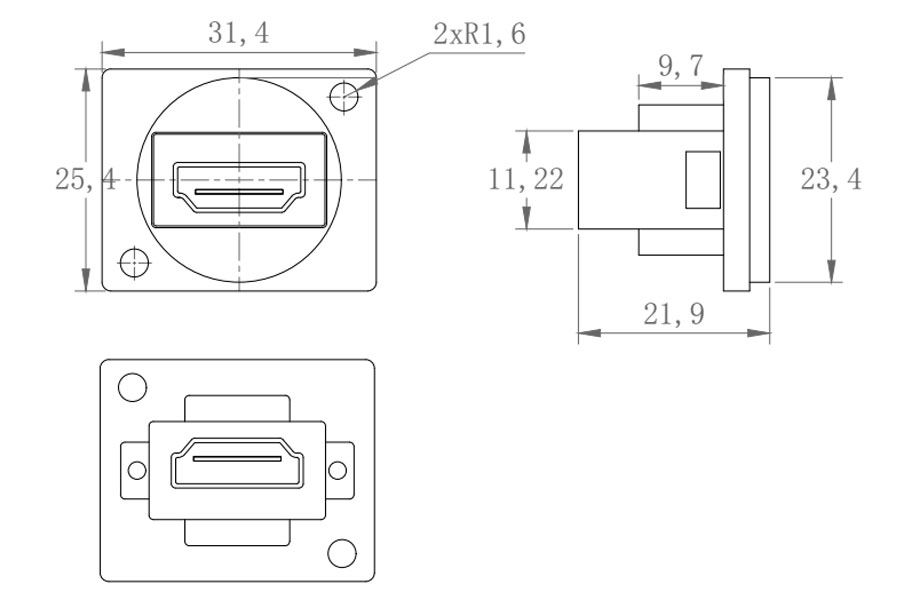

4.Hole Size

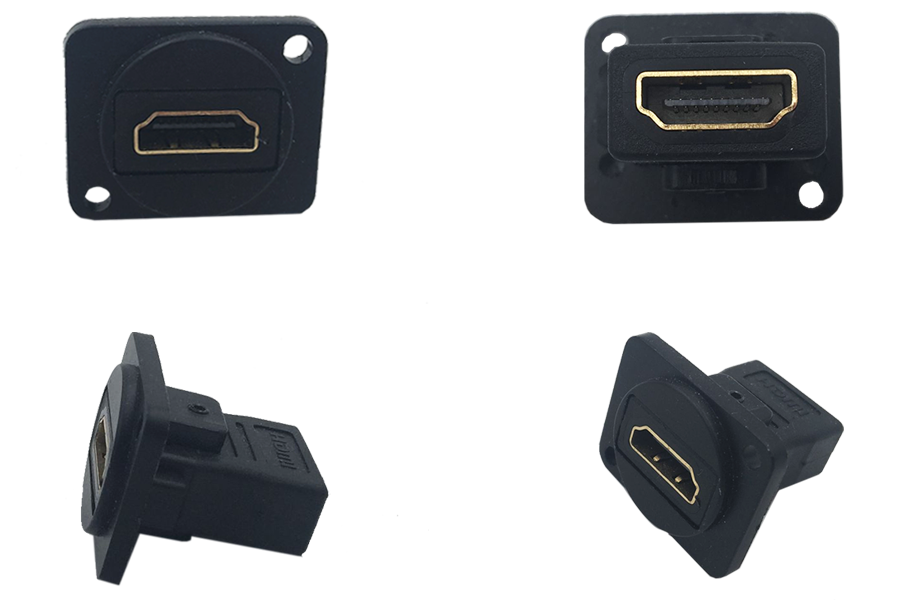

5.Real Shoothing
