RJ45 Signal Socket Direct Moulding IP44
SN:FX-01-018
Link Mode: PUSH LOCK
Rated Current(A): 1.5A
Protection Level: IP44
Rated Voltage(AC.V): 50V
Wire Specifications: Cat6, Cat5 Network Cable
Voltage Resistance(AC.V): 500V/per minute
Insulation Resistance: >500MΩ
Plugging Time: ≥500
Working Temperature: -20℃~80℃
Flame Retardant Level: 94-V0
SHAREProduct Info
1.Specification Parameter
| | Link Mode: | PUSH LOCK | Rated Current(A): | 1.5A |
| Protection Level: | IP44 | Rated Voltage(AC.V): | 50V | |
| Wire Specifications: | Cat6, Cat5 network cable | Voltage Resistance(AC.V): | 500V/per minute | |
| Insulation Resistance: | >500MΩ | Plugging Time: | ≥500 | |
| Working Temperature: | -20℃~80℃ | Flame Retardant level: | 94-V0 |
2.Materials
| Shell Insulation Parts: | High Performance Engineering Plastics | |
| Metal Shell: | Zinc Alloy Sandblasting Hard Chromium Plating | |
Conductive Terminal: | Conductive Terminal Beryllium Copper Gold Plated 2U" | |
Hardware Single: | SUS 304 |

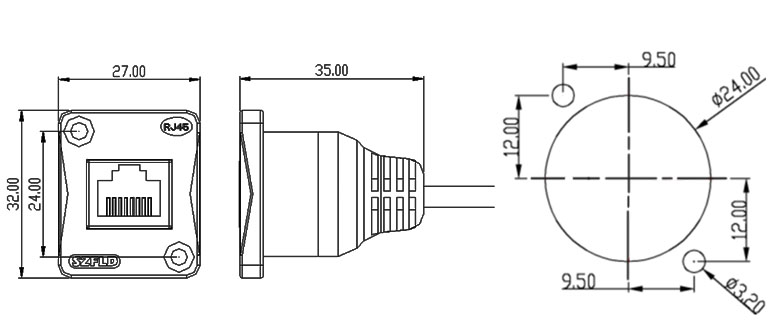

3.Hole size

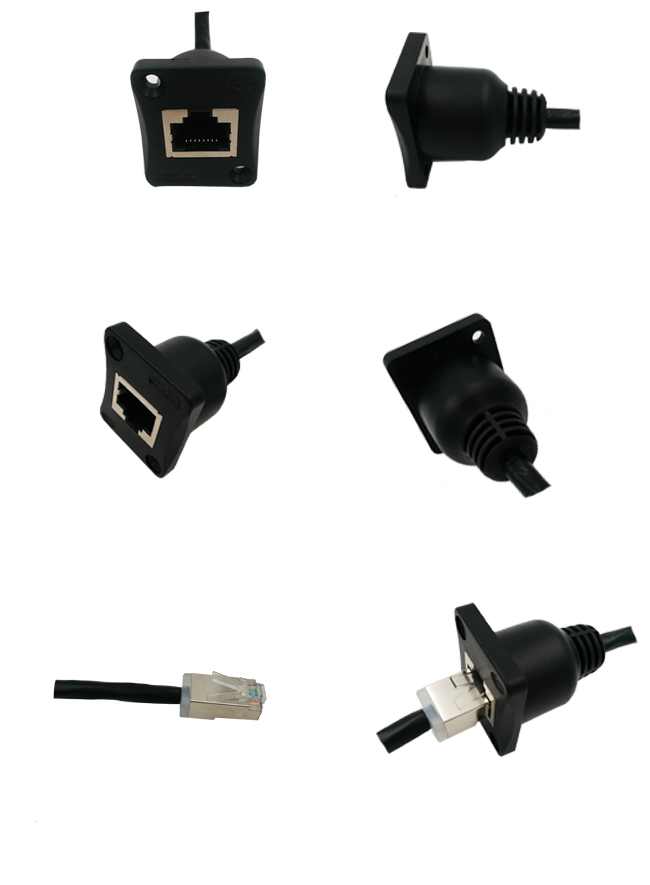

4.Real Shooting
